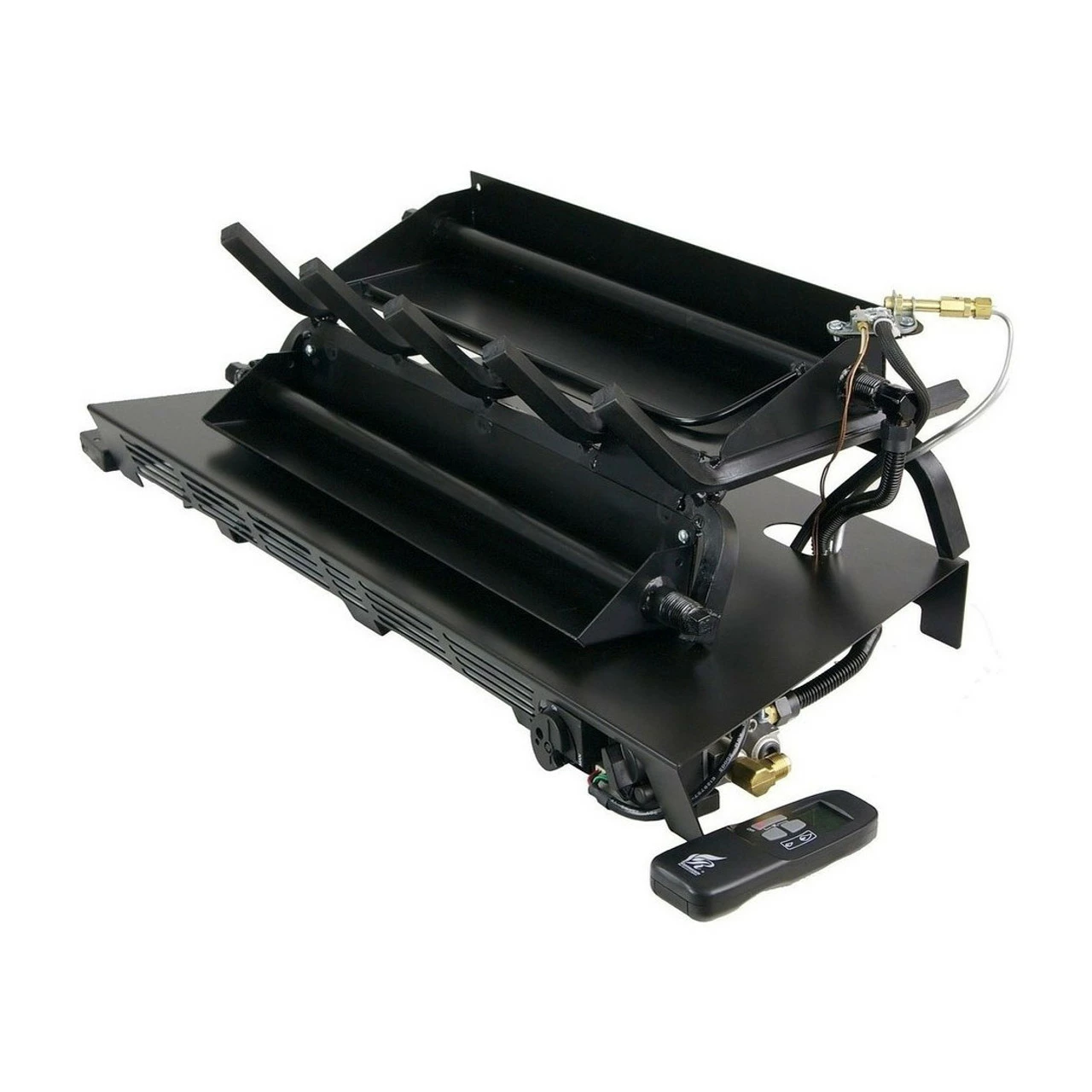

The Rasmussen LC Multi-Burner Vanisher Vented Hearth Kit will provide a full flame and tiered ember glow in a hearth kit well suited for larger fireplaces with taller openings. With the Valve Vanisher design it also raises the burner by 2 5/8″, but eliminate the big black box that holds the ignition and centers your log set.
“LC” Burners – Lower burner for embers and upper burner for main flame are welded to a heavy grate. Designed for larger scale fireplaces.
Valve Vanisher Features:
- Eliminates the off-centering or downsizing of the log set
- Heat sensitive controls now located in a cooler zone
- Raises burner by 2 5/8″ creating a false floor underneath
- Factory assembled and tested
Constructed of 16-gauge steel, it combines a dedicated lower burner for a large ember bed and front flame with an upper burner directly beneath the logs for a taller, fuller flame and upper ember glow. This burner can run on natural gas or propane and is available in many sizes to meet your needs. Each system comes complete with:
- Burner
- 5/8″ Grate
- Pan Filler
- Ember Magic
- Connector kit
- Damper clamp
- Remote Transmitter
- Instructions
The Electronic Ignition System is battery powered and uses a variable flame remote transmitter, allowing you to control the flame height of your fire. The Vanisher design has expertly located the valve and control module on the right/left sides of the unit so it is in the path of cool air and does not overheat.
Specification:
- Material: 16 Gauge Steel
- Size: 24″
- Type: Vented
- Fuel Type: Natural Gas, Propane
- FP Type: Side Face
- Style: Logs
- Ctns.: 1
- Weight: 63
- Certification: RIW
- BTU: 70K
Owners Manual & Spec Sheet
Owners Manual
Owners Manual | PDF | Download
Spec Sheet
Rasmussen Spec Sheet | PDF | Download
Owners Manual & Spec Sheet
Owners Manual
Owners Manual | PDF | Download
Spec Sheet
Rasmussen Spec Sheet | PDF | Download
Additional Product Specifications
-
- Ignition Type:
- Electronic Ignition
-
- Size:
- 24″
-
- Vent Type:
- Vented
-
- Material:
- Steel
-
- Burner Type:
- Standard
-
- Burner Style:
- Log Burner
-
- Width Range:
- 24 – 29 Inches
