Rasmussen 24″ Flaming Ember Extra Burner With Manual Safety Pilot Control

“FX” Burner – L-shaped half-pan burner that sits on the firebox floor underneath a grate. Single pipe burner with ember boosters that increase the depth of the ember bed by 2 inches compared to the F burner.

The Rasmussen FX Flaming Ember-Extra Vented Burner With Manual Easy Safety Pilot Control is designed with a basic single tube burner and paired with a grate and a larger ember booster. This hearth kit will produce pleasing, variable flames with a more compact ember bed.

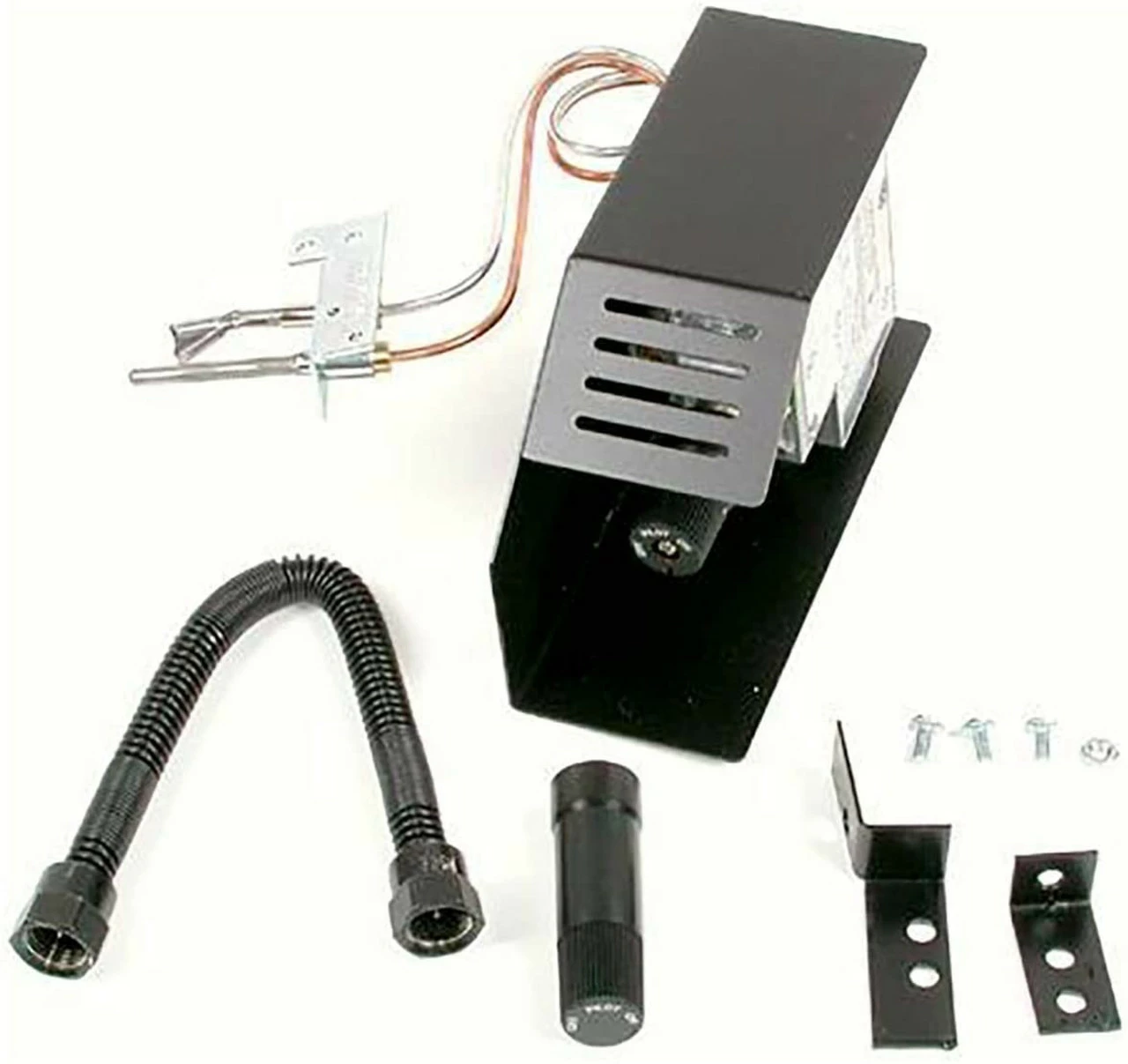

Manual Safety Pilot Control (standing pilot). Provides safety shutdown in the event of an interruption of the gas supply or flameout. It provides a convenient means of lighting the burner and controlling flame height. A safety control is required for all propane installations, advisable for natural gas, and are required for certain jurisdictions. [EASY] control allows for upgrade to remote operation at a later time.

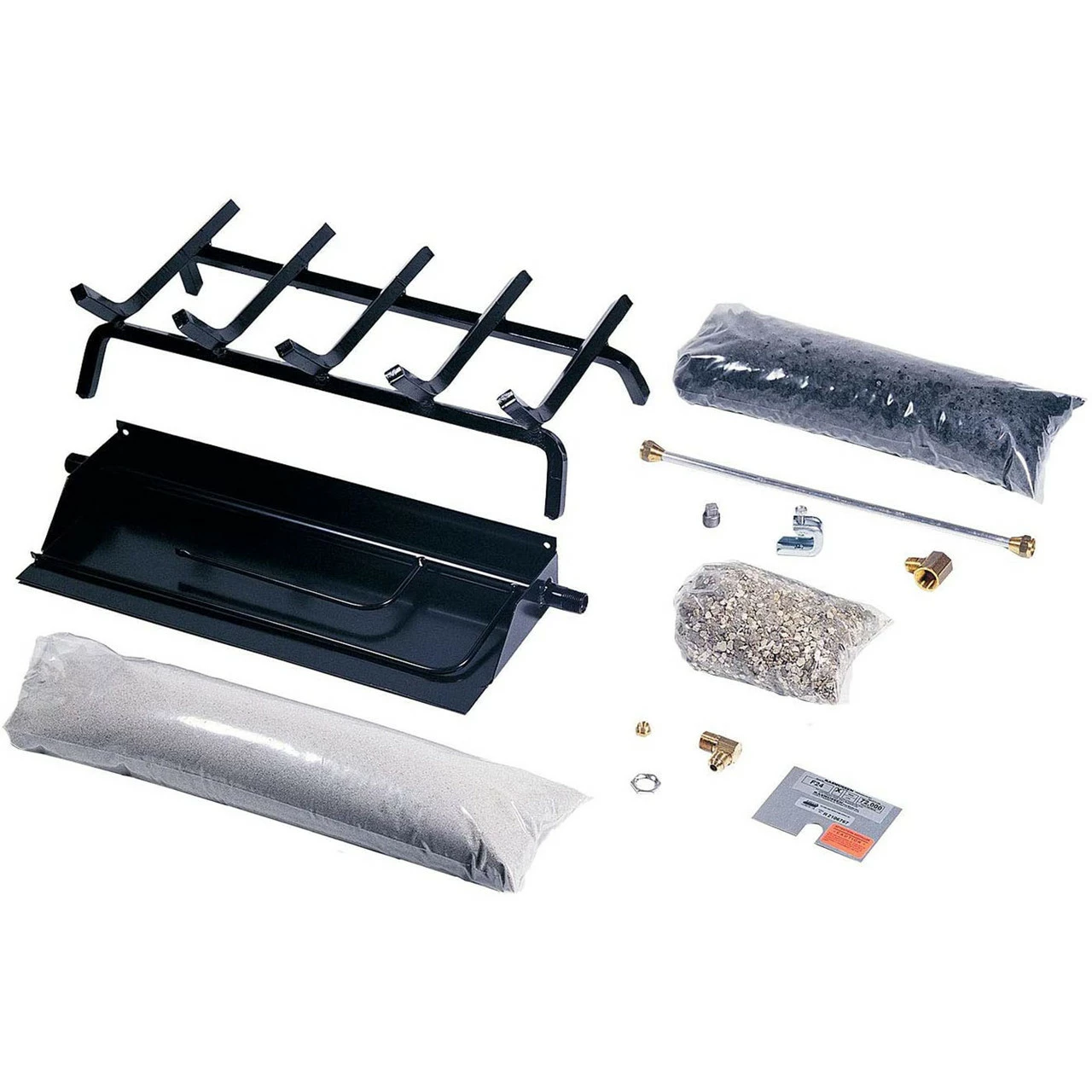

This vented burner system operates on natural gas with a heat output of 72,000 BTUs. The burner pan is constructed of heavy 16-gauge steel, with 1/2″ schedule-40 pipe for the main burner tube and 1/4″ steel tubing for the ember booster. Each hearth kit comes complete with:

• Pan Filler
• Ember Magic
• Connector kit
• Damper clamp
• Manual Easy Safety Pilot Control
• Instructions

This burner is for use only in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control calves and components.

Specification:

• Material: 16-gauge steel
• Size: 24″

• Type: Vented
• Fuel Type: Natural Gas, Propane
• FP Type: Side Face
• Style: Logs
• Ctns.: 1
• Weight: 38
• Certification: Z21.84
• BTU: 72K

Manual “EASY” Controls may be upgraded at any time to either “Remote Ready” or “Variable Flame Height Remote Control” functionality with the addition of either the SE-UP1 or RE-UP1 upgrade kits.
