Rasmussen 24″ Double Face Custom Pan Burner With Variable Remote Easy Safety Pilot Control

The Custom Burner is the original gas log pan burner invented by T.R. Rasmussen in 1958. The logs sit in the welded steel rectangular burner pan, which creates an engulfing flame with a band of glowing embers. The Custom Burner can be installed on legs for a clean look (or if the gas supply is out of the floor) or placed flush on the firebox floor with accessory volcanic ash ramped to create a pit appearance. Custom Burners are available for natural gas and propane and can be used with a variety of safety controls, including wireless remote.

All vented log styles can be used with the Custom Burner. Fire Balls are stylish in modern and contemporary decors. Pine Cones are well suited for more rustic settings.

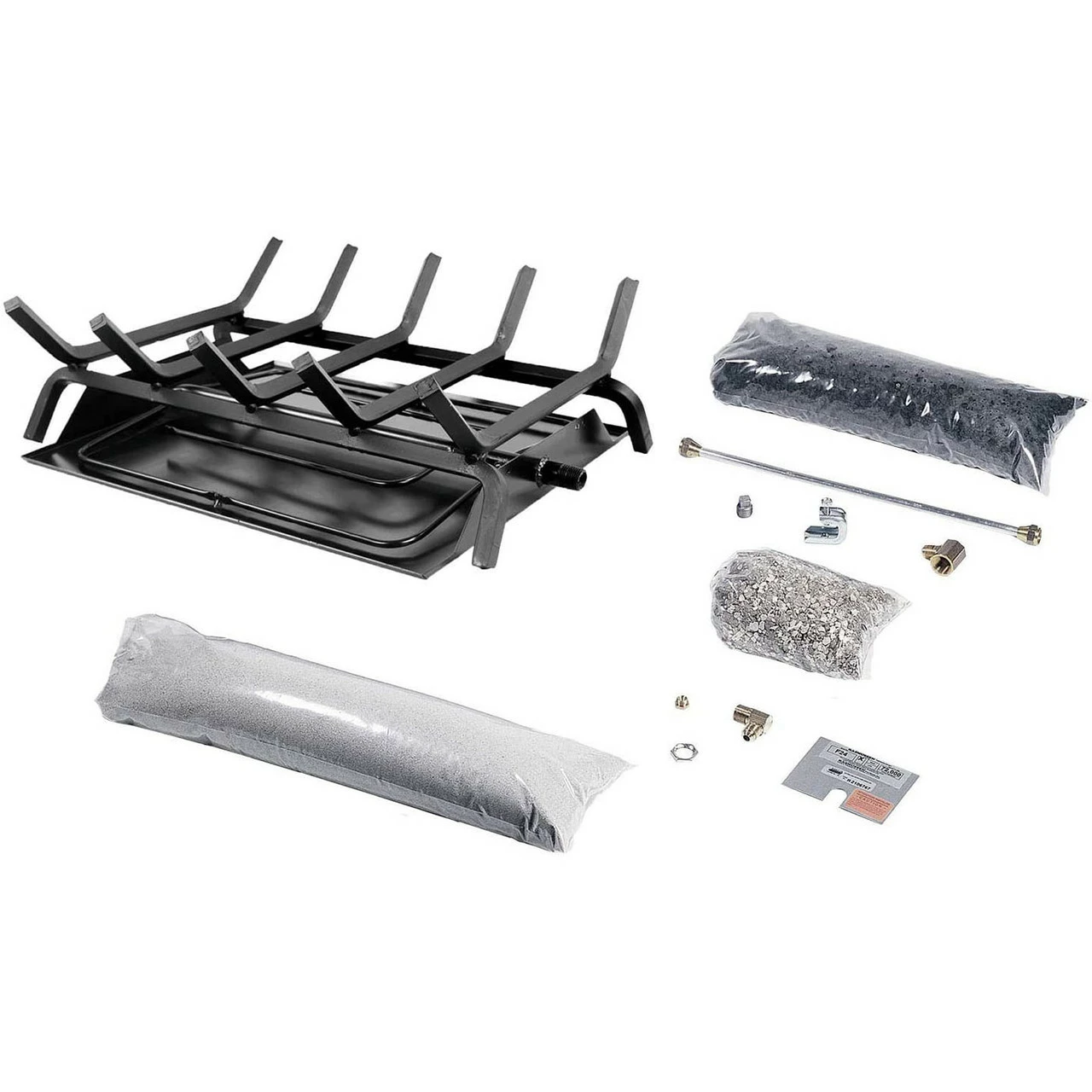

“DF-CF” Burner – Full pan that sits on the firebox floor underneath a see-through grate. Single pipe burner with multiple ember boosters provides flame and ember glow for Double Face (See- Through) Fireplaces. A myriad of ember booster tubes provide the gas to power the ember bed and secondary flames. The burner is fully welded and the inlet is threaded internally for 3/8″ and externally for 1/2″ fittings. The HFG grate is made of heavy 5/8″ steel welded on the diamond for a massive look.This Custom Pan Burner With Variable Remote Easy Safety Pilot Control comes with:

• 5/8″ steel Grate
• Pan Filler

• Ember Magic
• Connector kit
• Damper clamp
• Variable Remote Easy Safety Pilot Control
• Remote Transmitter
• Instructions

Safety Lighting Kits provide safety shutdown in the event of an interruption in the gas supply or flameout. They also provide a convenient means of lighting the main burner(s) and controlling the flame height. They are required for all propane installations, advisable for natural gas, and are required for installations in certain jurisdictions.

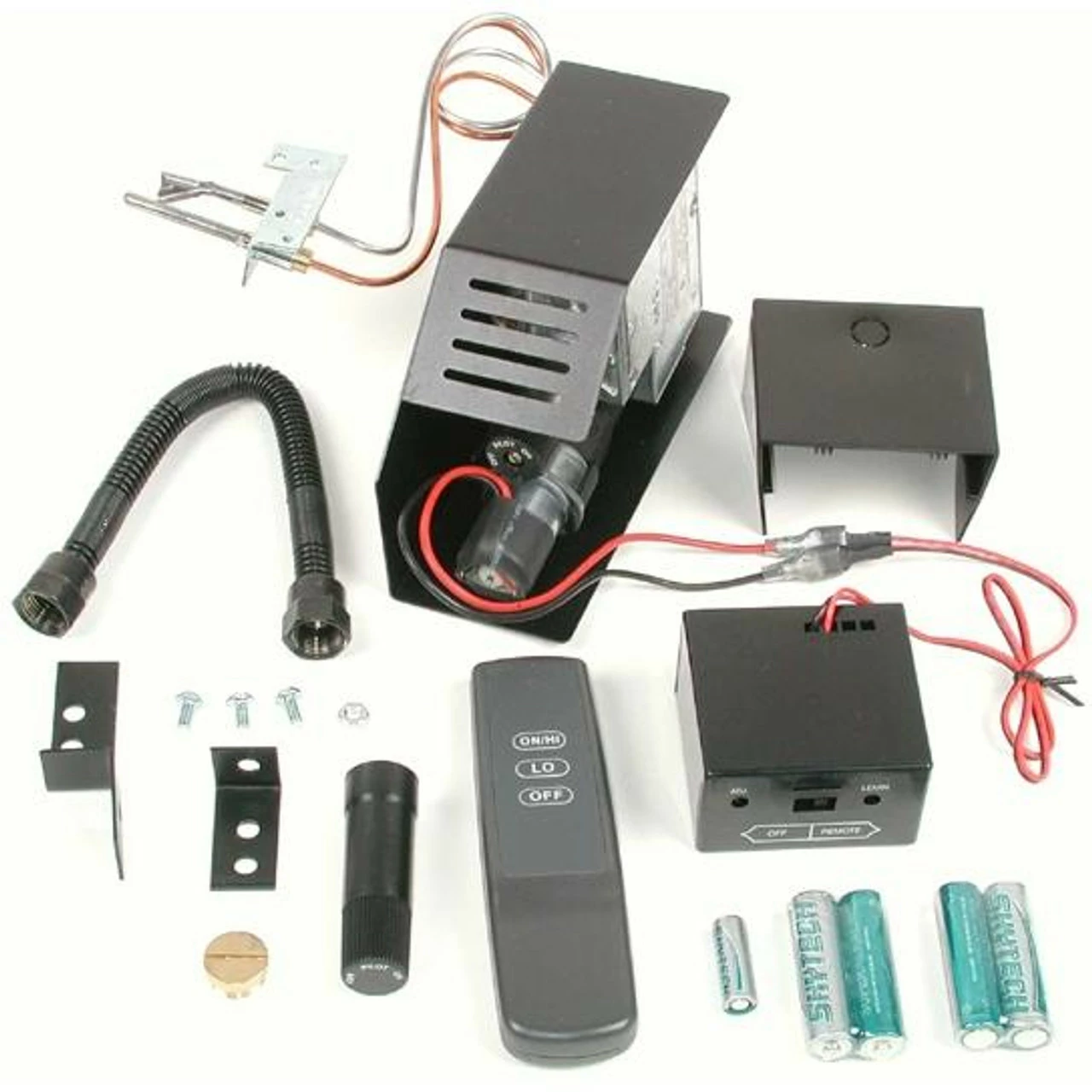

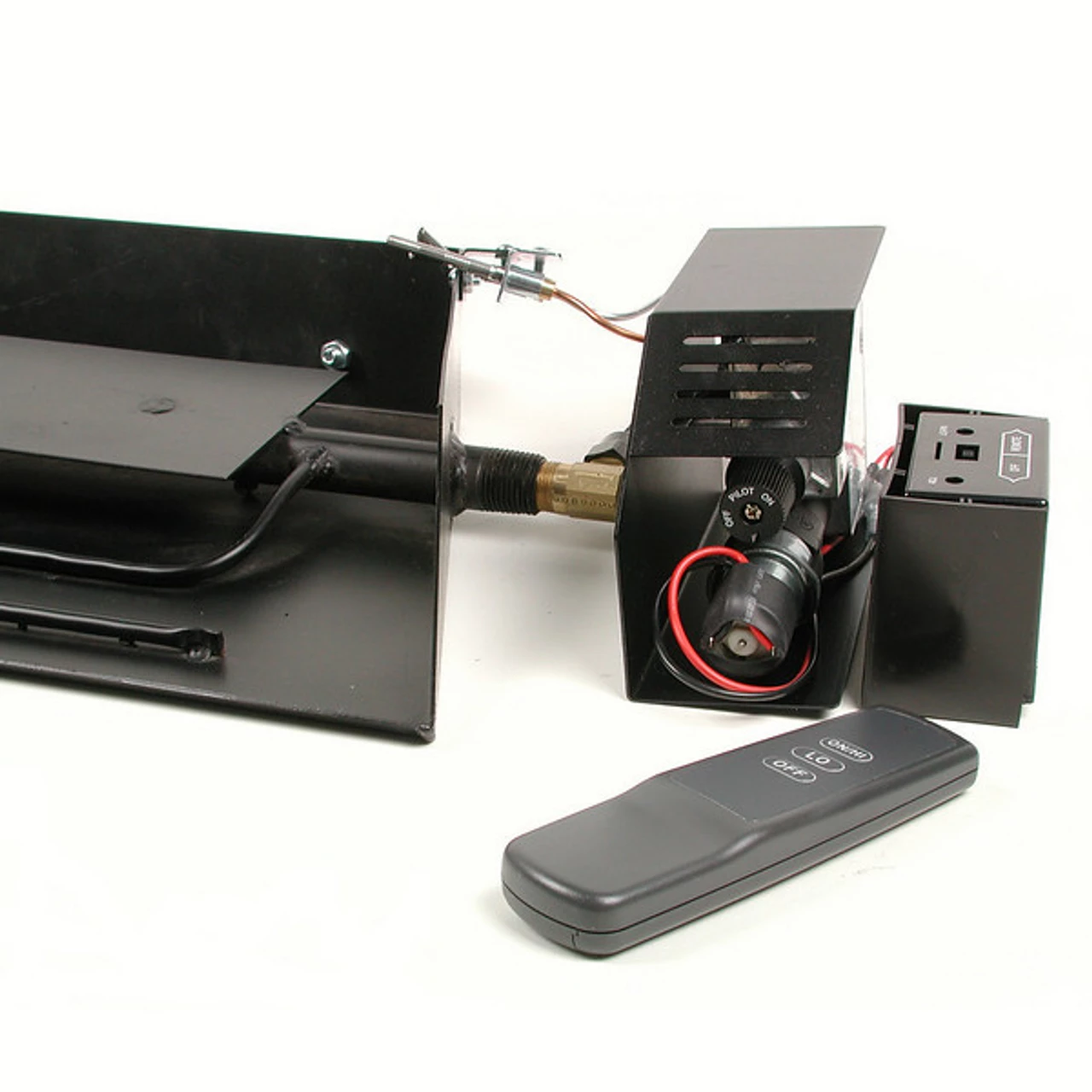

RMC1E Wireless Variable Flame Height Remote Safety Pilot “EASY” Control. Light the burner and adjust the flame height with the hand-held wireless remote transmitter. Provides safety shutdown in the event of an interruption in the gas supply or flameout. Also provides a convenient means of lighting the main burner. A safety control is required for all Propane installations, is advisable for natural gas, and is required in certain jurisdictions.



Specification:

• Material: Steel
• Dimension: 18.25″w x 16″d
• Set Size: 24″

• Type: Vented
• Fuel Type: Natural Gas, Propane
• FP Type: Double Face

• Style: Logs

• Ctns.: 2
• Weight: 65
• Certification: Z21.84
• BTU: 85K
