Rasmussen 18″ Flaming Ember Extra Burner With Variable Remote Easy Safety Pilot Control

Vented Gas Burners are designed to burn with a yellow, smoky, wood-like flame that will produce carbon soot which must be fully exhausted up the chimney. Vented gas logs are not a cure for a smoking (non-drafting) chimney.

“FX” Burner – L-shaped half-pan burner that sits on the firebox floor underneath a grate. Single pipe burner with ember boosters that increase the depth of the ember bed by 2 inches compared to the F burner.

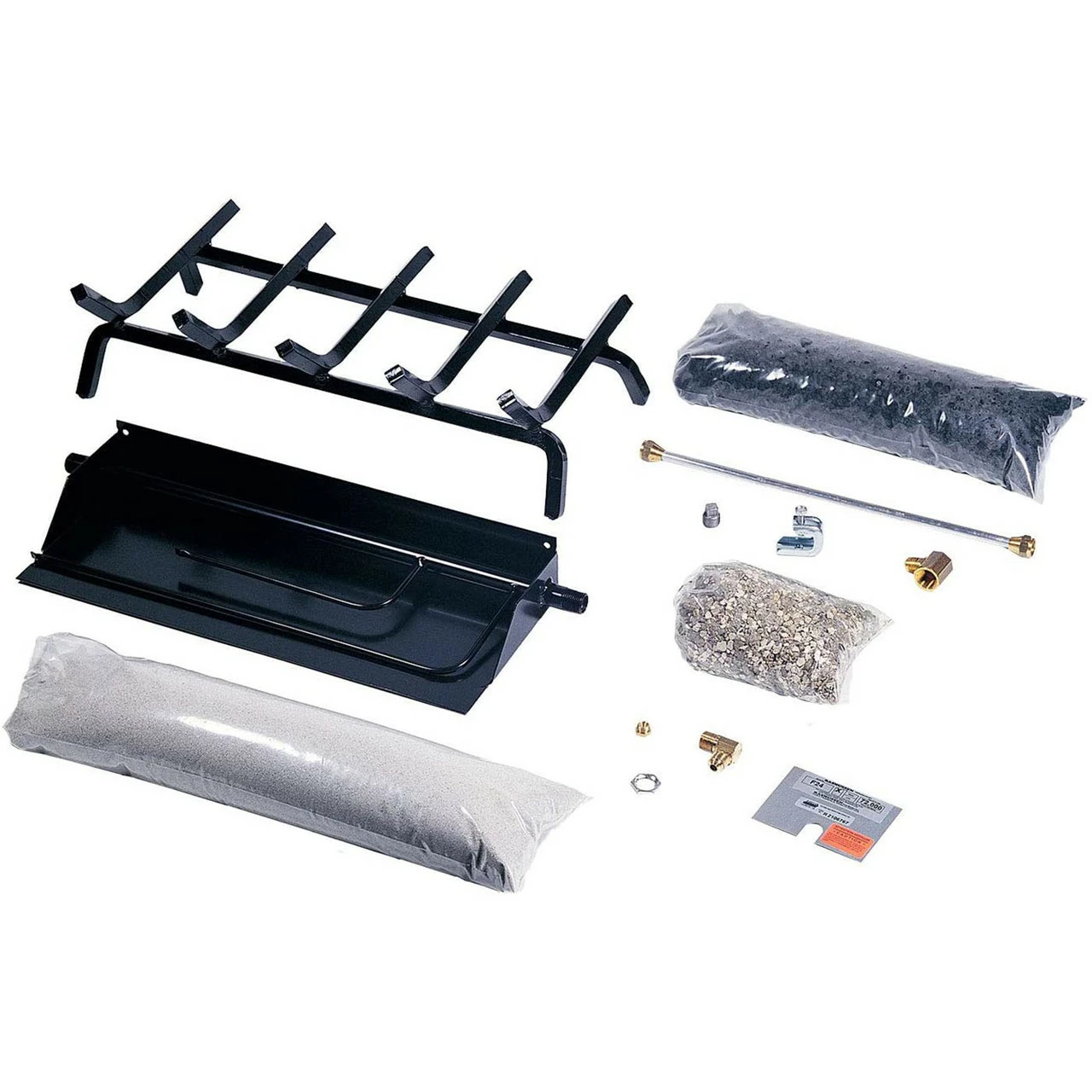

The Rasmussen FX Flaming Ember-Extra Vented With Variable Remote Easy Safety Pilot Control is designed with a basic single tube burner and paired with a grate and a larger ember booster. This hearth kit will produce pleasing, variable flames with a more compact ember bed. The burner pan is constructed of heavy 16-gauge steel, with 1/2″ schedule-40 pipe for the main burner tube and 1/4″ steel tubing for the ember booster. Each hearth kit comes complete with:

• Burner
• Grate
• Granulated white sand
• Ember Magic
• Connector kit
• Damper clamp
• Variable Remote Easy Safety Pilot Control
• Remote Transmitter

Safety Lighting Kits provide safety shutdown in the event of an interruption in the gas supply or flameout. They also provide a convenient means of lighting the main burner(s) and controlling the flame height. They are required for all propane installations, advisable for natural gas, and are required for installations in certain jurisdictions.

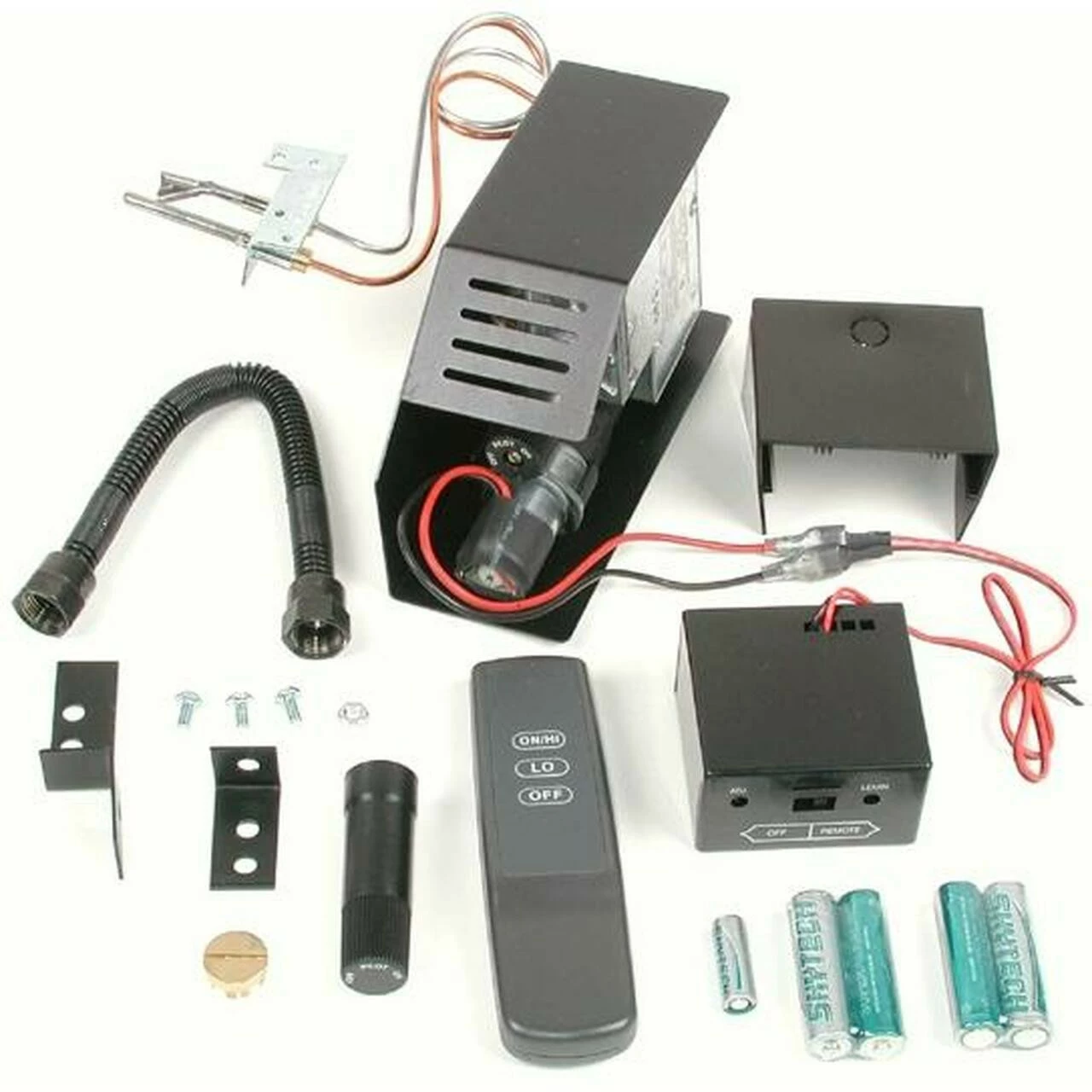

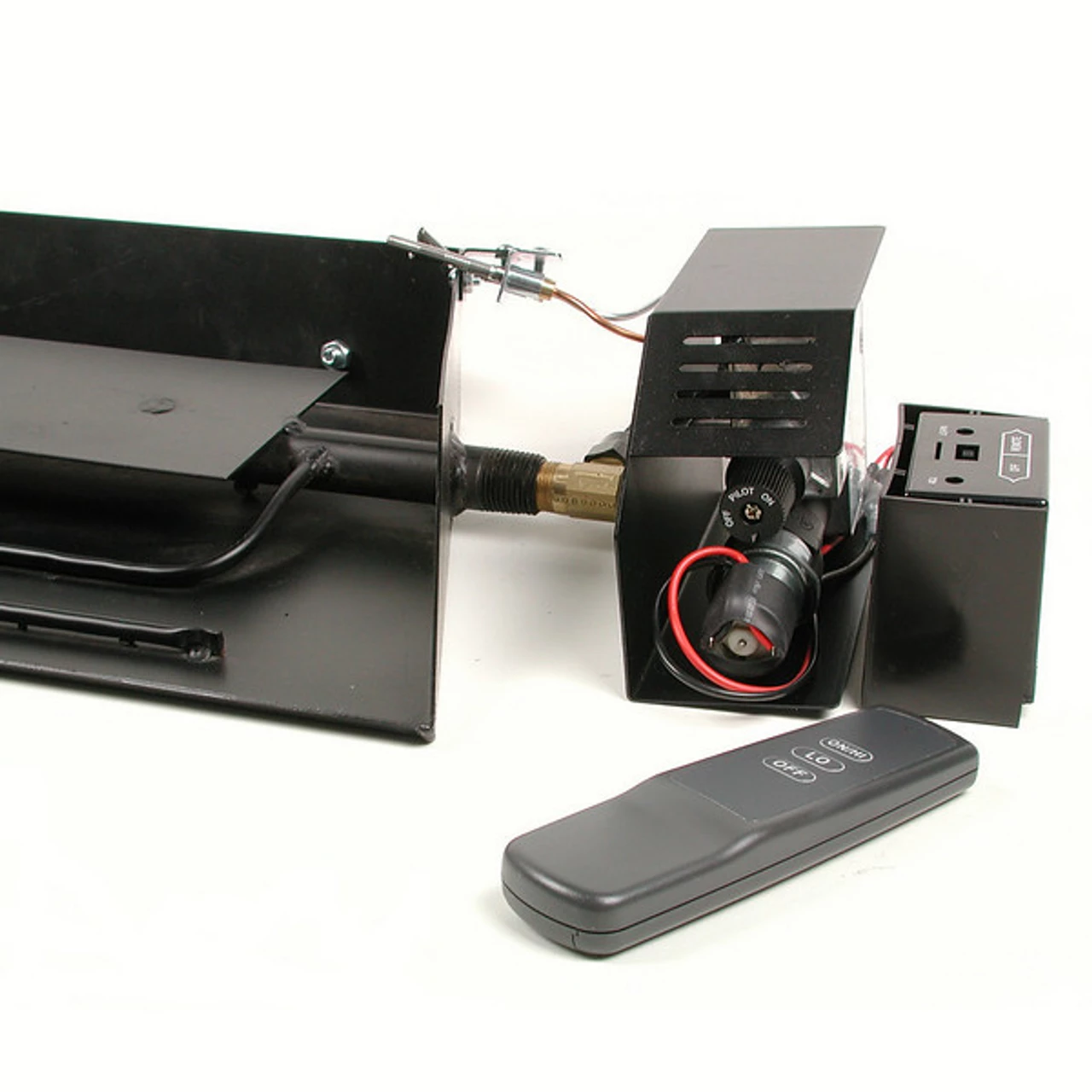

RMC1E Wireless Variable Flame Height Remote Safety Pilot “EASY” Control. Light the burner and adjust the flame height with the hand-held wireless remote transmitter. Provides safety shutdown in the event of an interruption in the gas supply or flameout. Also provides a convenient means of lighting the main burner. A safety control is required for all Propane installations, is advisable for natural gas, and is required in certain jurisdictions.

Specification:

• Material: 16-gauge steel
• Size: 18″
• Type: Vented
• Fuel Type: Natural Gas, Propane
• FP Type: Side Face
• Style: Logs
• Ctns.: 1
• Weight: 28
• Certification: Z21.84
• BTU: 43K
