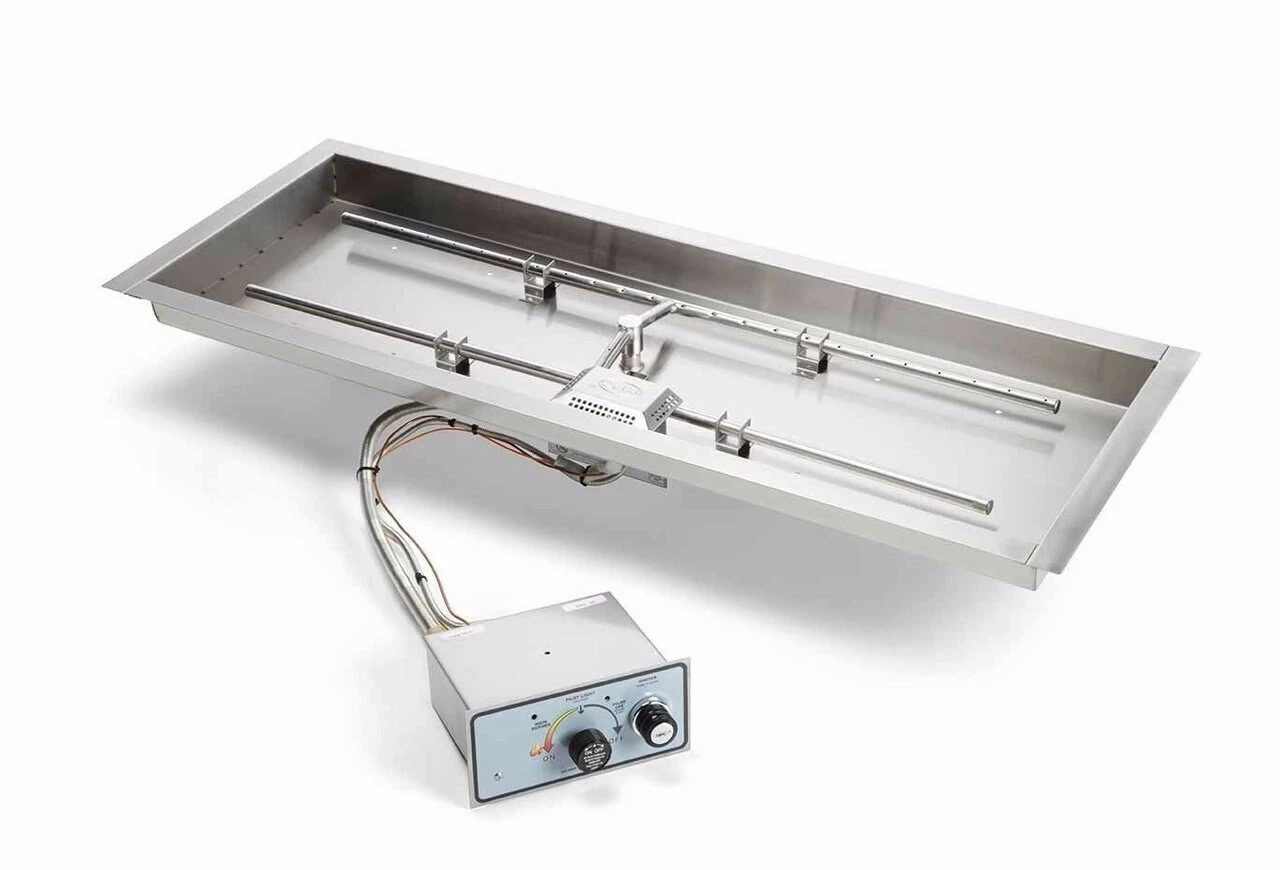

54 X 16 Inch Rectangle Bowl Pan Fire Pit Insert Push Button / Flame Sense – HPC

Outdoor Push Button Ignition Rectangular H-Burner Kit

Rectangle Fire Pit Insert – Flame Sensing

Flex Line Models

These certified gas fire pit inserts incorporate a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.

Now with a Lifetime warranty on all Burners!

Features:

• Perfect for fire pits without electricity and need for flame sensing.
• Flex line configuration
• Flame sensing – flame blows out, gas will turn off
• Spark ignition – No match required.

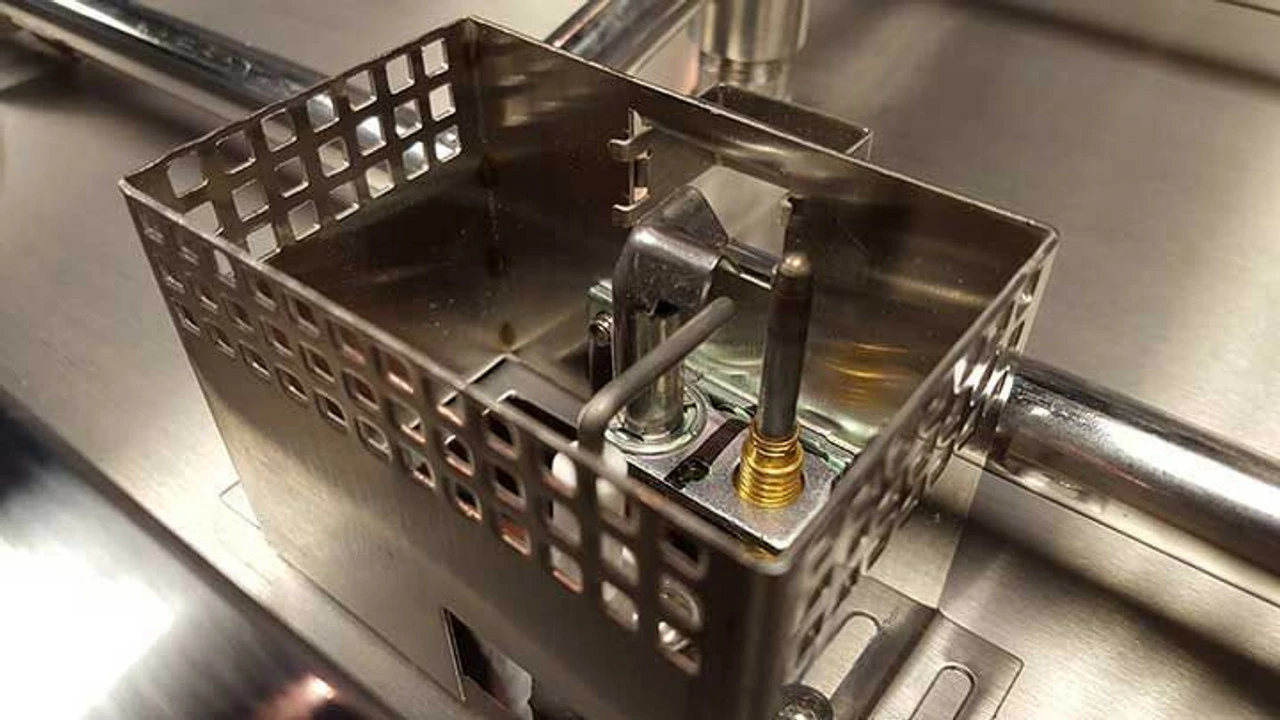

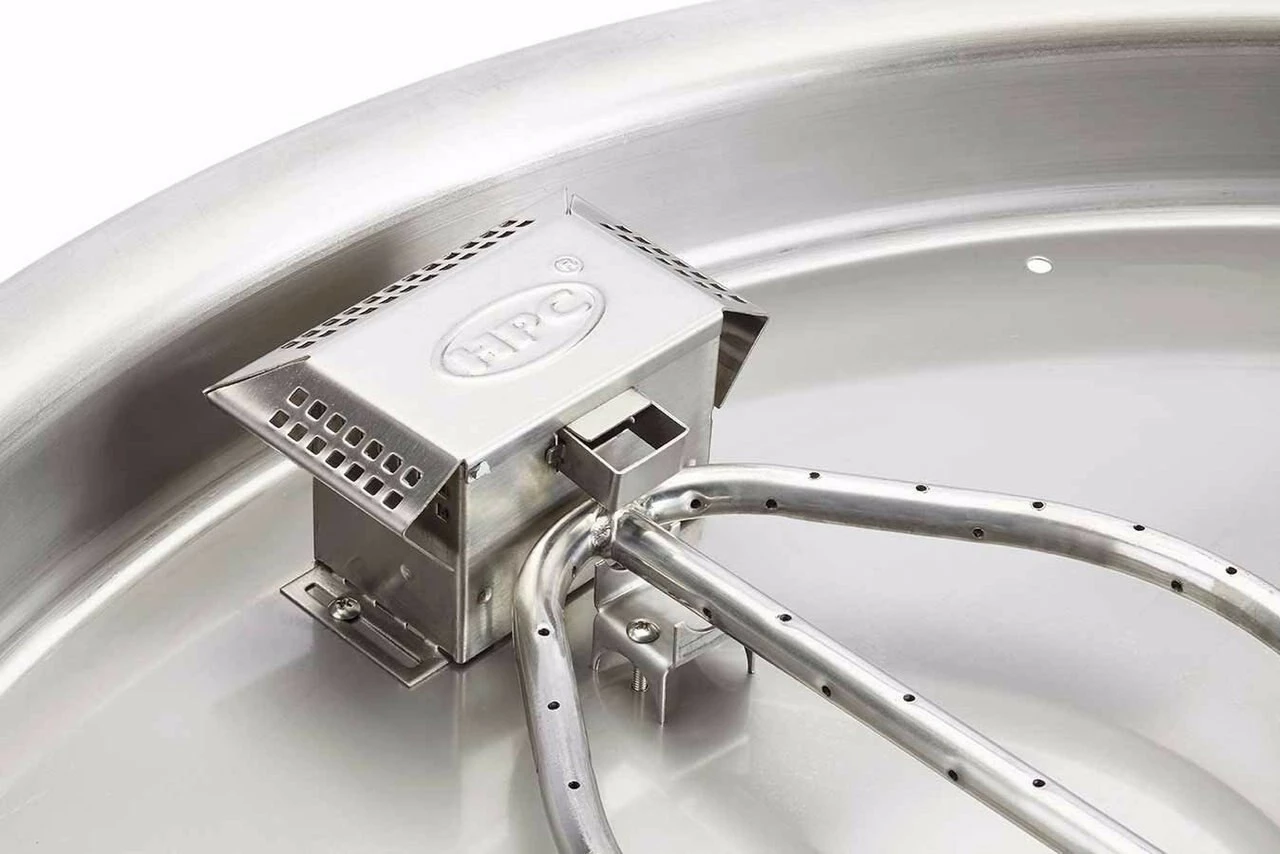

• Complete drop-in fire pit insert utilizes a standing pilot with thermocouple to safely control gas flow, manual spark igniter (AA battery) and safety pilot valve.
• CSA Certified up to 140K Btu

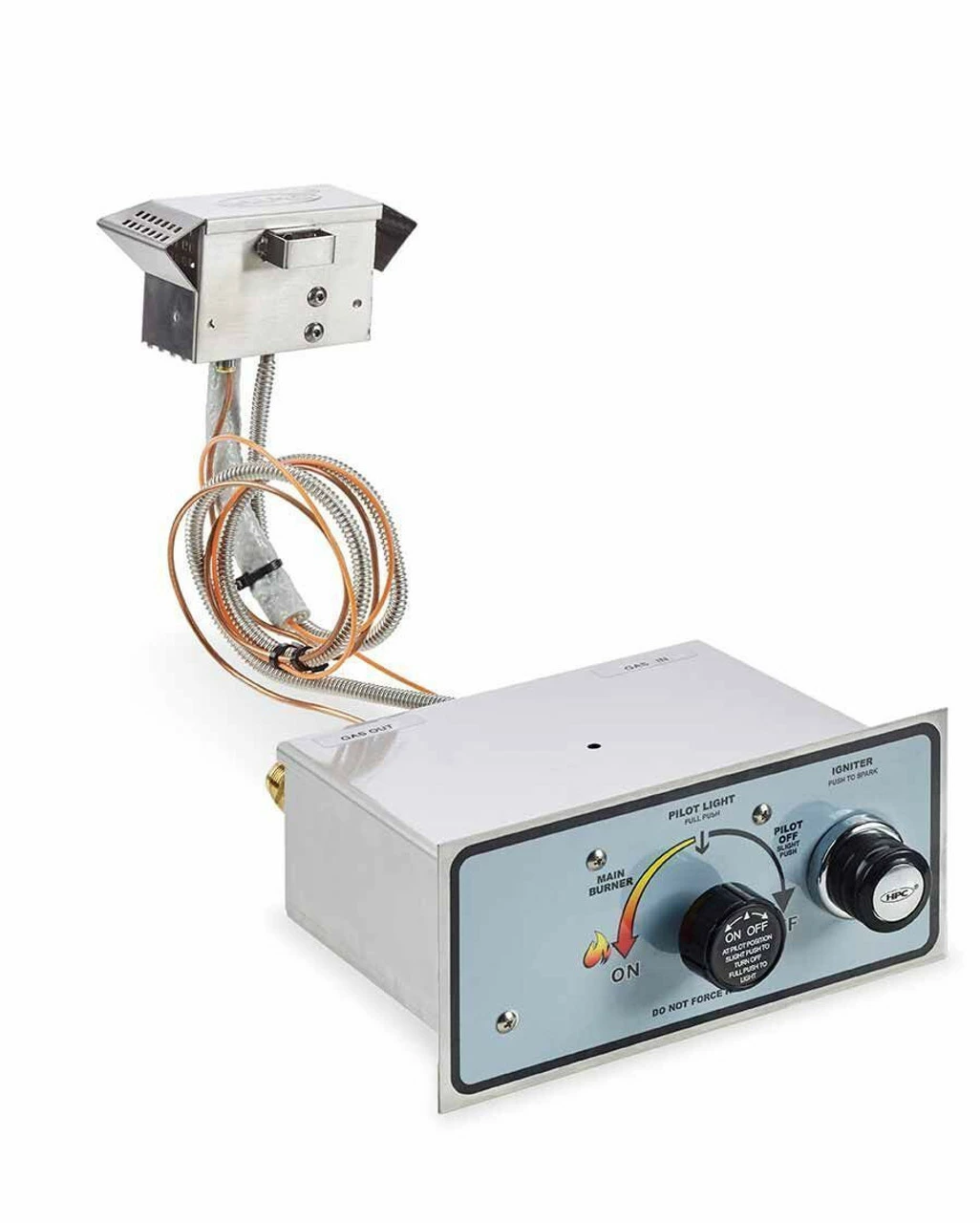

• Comes fully assembled with #304 stainless steel pan & burner, FPPK-HC control box with pilot assembly and whistle-free flex line.
• CSA Certified Small Tank Approved with use of STLPK Kit if shown with this symbol (*ST*)

Rectangle Pan Specifications – FLEX

Model # / Description / BTU

FPPK24X12-H-FLEX– 24×12” Pan, 18×6” H-Burner, 36” Flex Line, 75k Btu
FPPK30X12-H-FLEX– 30×12” Pan, 24×6” H-Burner, 36” Flex Line, 90k Btu
FPPK36X14-H-FLEX– 36×14” Pan, 30×8” H-Burner, 36” Flex Line, 90k Btu
FPPK42X14-H-FLEX– 42×14” Pan, 36×8” H-Burner, 36” Flex Line, 140k Btu
FPPK54X16-H-FLEX– 54×16” Pan, 48×10” H-Burner, 36” Flex Line, 140k Btu

Owners Manuals & Spec Sheets
