37X8″ Rectangle Pan Linear Interlink Fire Pit Insert – Push Button Flex Line – HPC

Interlink Linear Flat Pan – Push Button / Flame Sensing

Model # / Description / BTU

FPPK25X8-L-FLEX / 25″x8″ Linear Pan / 50K Btu
FPPK37X8-L-FLEX / 37″x8″ Linear Pan / 75K Btu
FPPK49X8-L-FLEX / 49″x8″ Linear Pan / 100K Btu
FPPK61X8-L-FLEX / 61″x8″ Linear Pan / 125K Btu
FPPK73X8-L-FLEX / 73″x8″ Linear Pan / 150K Btu
FPPK97X8-L-FLEX / 97″x8″ Linear Pan / 200K Btu

On/Off Models: Includes the convenience and safety features- optional remote control available.

Operation

Start Up: This is done by use of a wall switch or remote control (or smart phone on Hi/Lo Models. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.

Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.

Shut Down: To turn OFF the fire pit simply use wall switch, remote control or smart phone.

Features:

• Perfect for fire pits without electricity and need for flame sensing.
• Flex line configuration
• Flame sensing – flame blows out, gas will turn off
• Spark ignition – No match required.

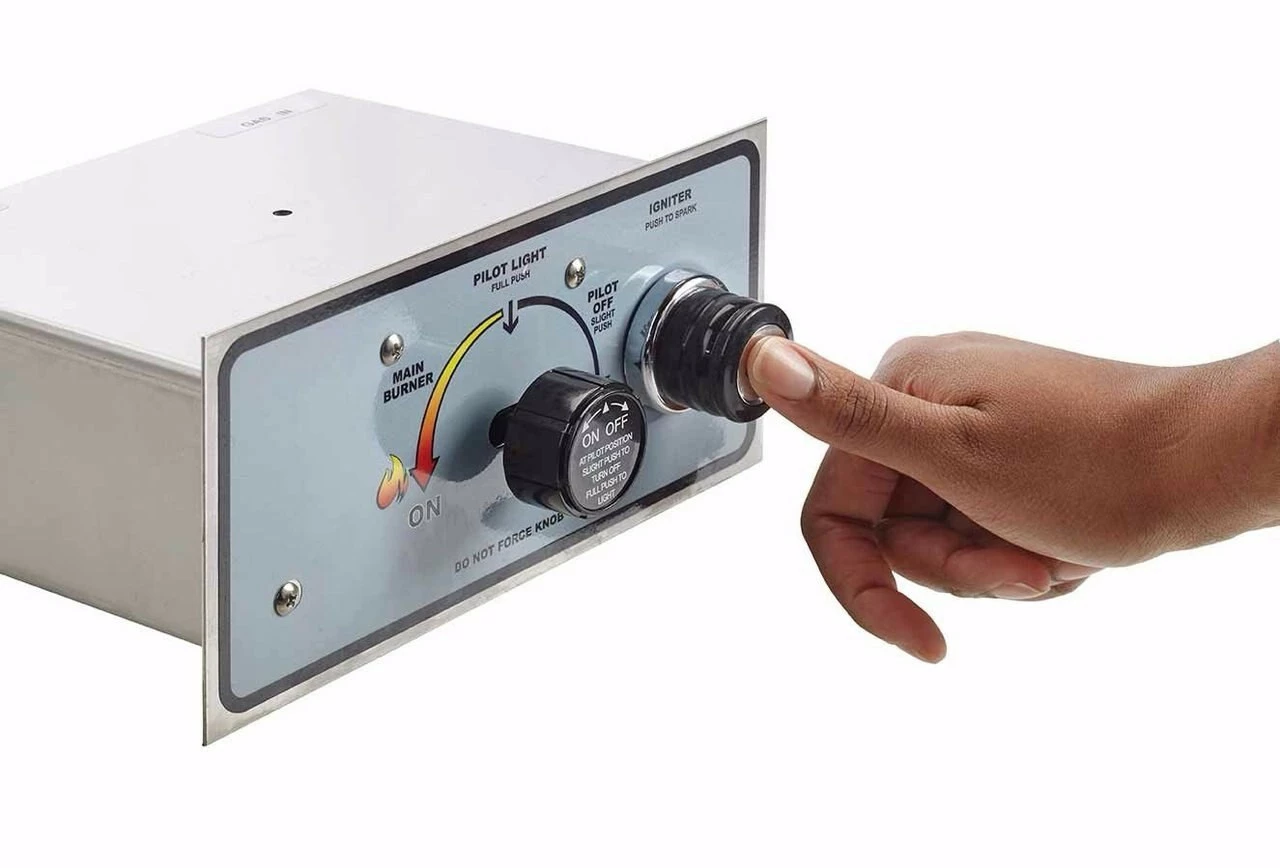

• Complete drop-in fire pit insert utilizes a standing pilot with thermocouple to safely control gas flow, manual spark igniter (AA battery) and safety pilot valve.
• CSA Certified up to 140K Btu
• Comes fully assembled with #304 stainless steel pan & burner, FPPK-HC control box with pilot assembly and whistle-free flex line.
• CSA Certified Small Tank Approved with use of STLPK Kit if shown with this symbol (*ST*)

Flat Bowl Type Pan – Gas Fire Pit Insert Models

The fire pit pan is 2-3/8″ deep w/ 1-3/8″ lip

This style of pan is our most popular – available from the small 18″ model to the large 42″ version.
