24″ Square Bowl Pan Penta Burner Fire Pit Insert – Push Button Ignition – HPC

Outdoor Push Button Ignition Penta Square Bowl Pan Burner Kit

Square Fire Pit Insert – Push Button / Flame Sensing

Flex Line Models

These certified gas fire pit inserts incorporate a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.

Now with a Lifetime warranty on all Burners!

Square Bowl Pan Specifications

Model # / Description / BTU

FPPK18-SQBL-FLEX / 18×18” Bowl pan, 12×12″ PENTA Burner / 90K
FPPK24-SQBL-FLEX / 24×24″ Bowl pan, 18×18″ PENTA Burner / 90K
FPPK30-SQBL-FLEX / 30×30″ Bowl pan, 24×24” PENTA Burner / 140K
FPPK36-SQBL-FLEX / 36×36″ Bowl pan, 30×30″ PENTA Burner / 140K

Features:

• Perfect for fire pits without electricity and need for flame sensing.
• Flex line configuration
• Flame sensing – flame blows out, gas will turn off

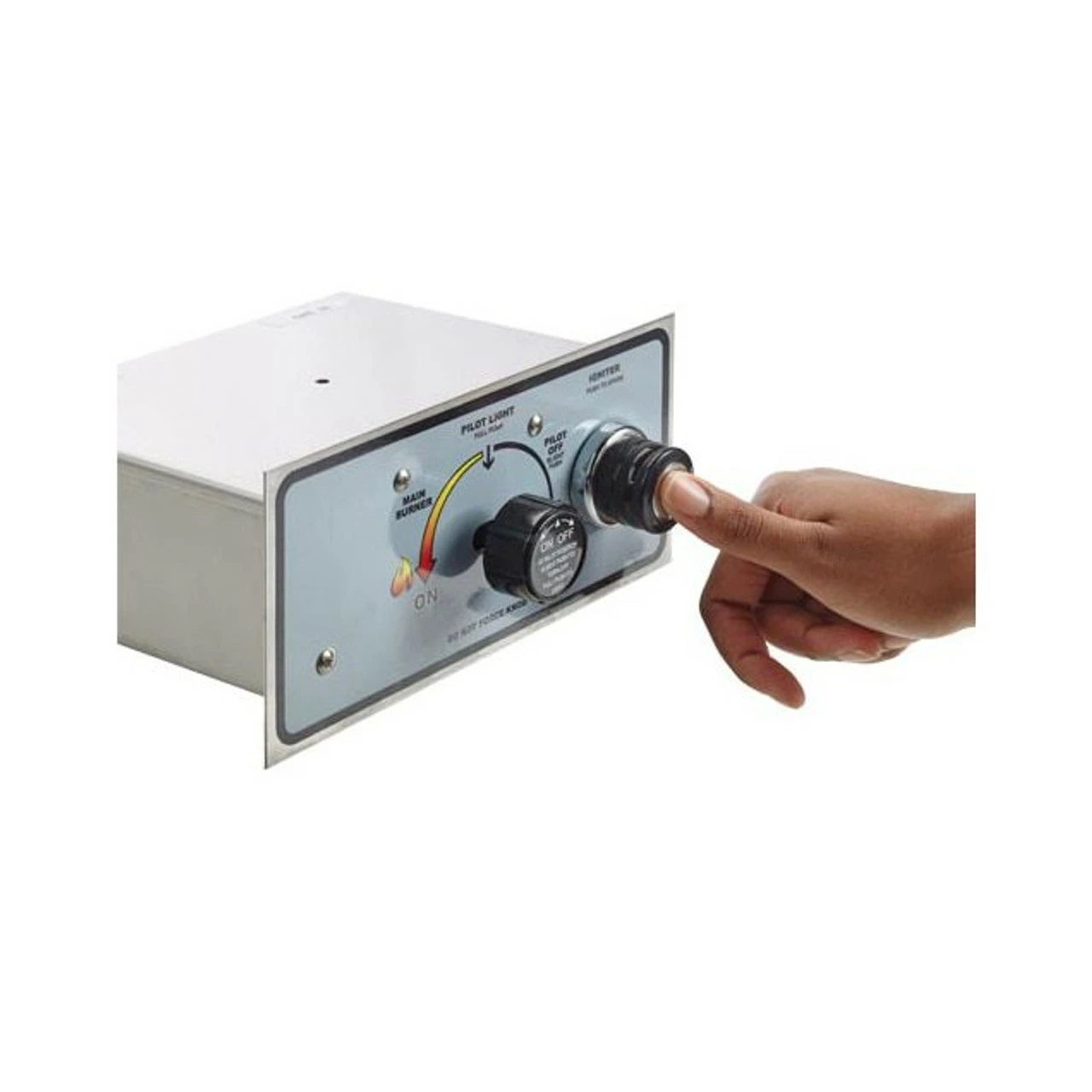

• Spark ignition – No match required.
• Complete drop-in fire pit insert utilizes a standing pilot with thermocouple to safely control gas flow, manual spark igniter (AA battery) and safety pilot valve.
• CSA Certified up to 140K Btu

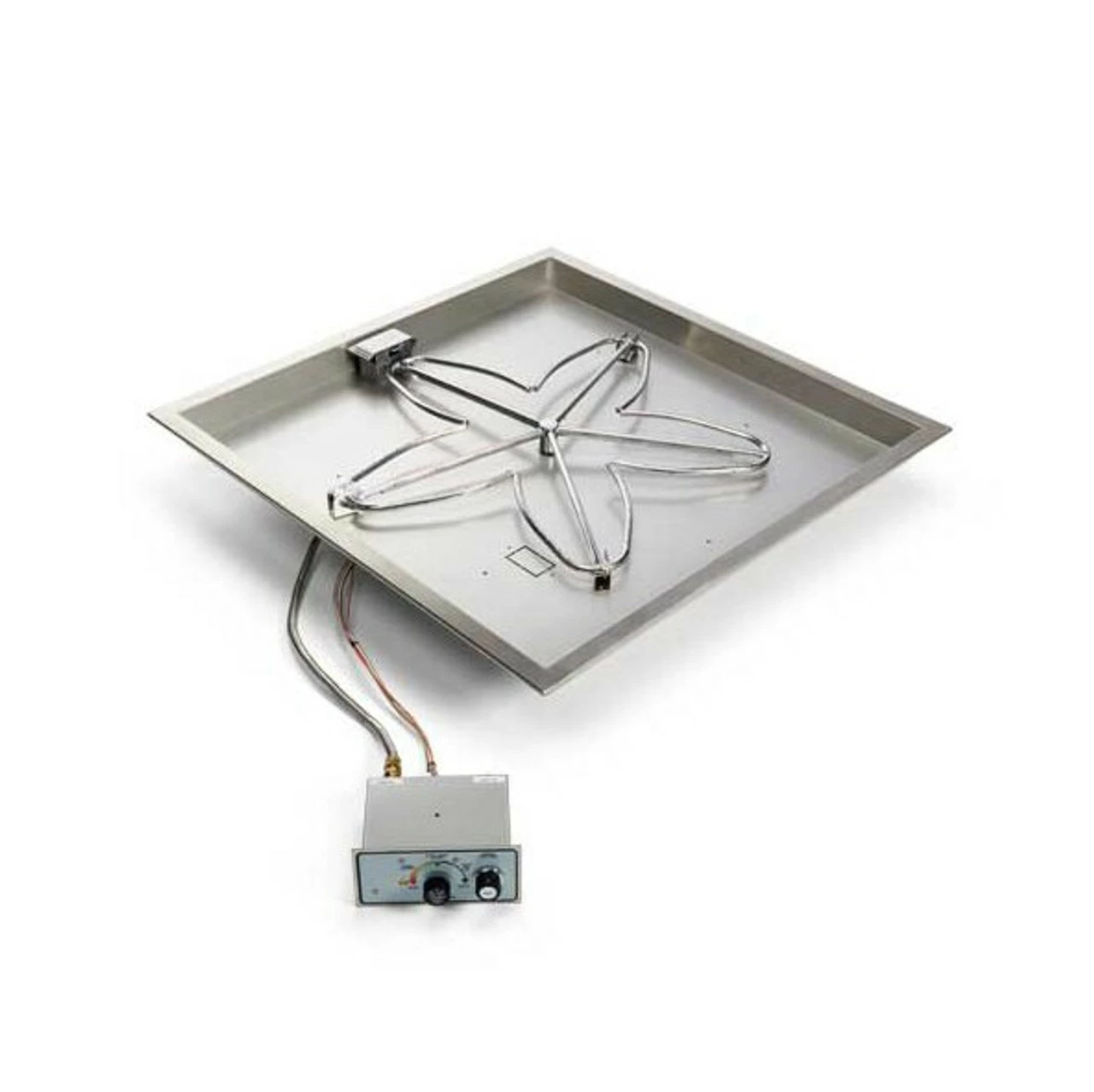

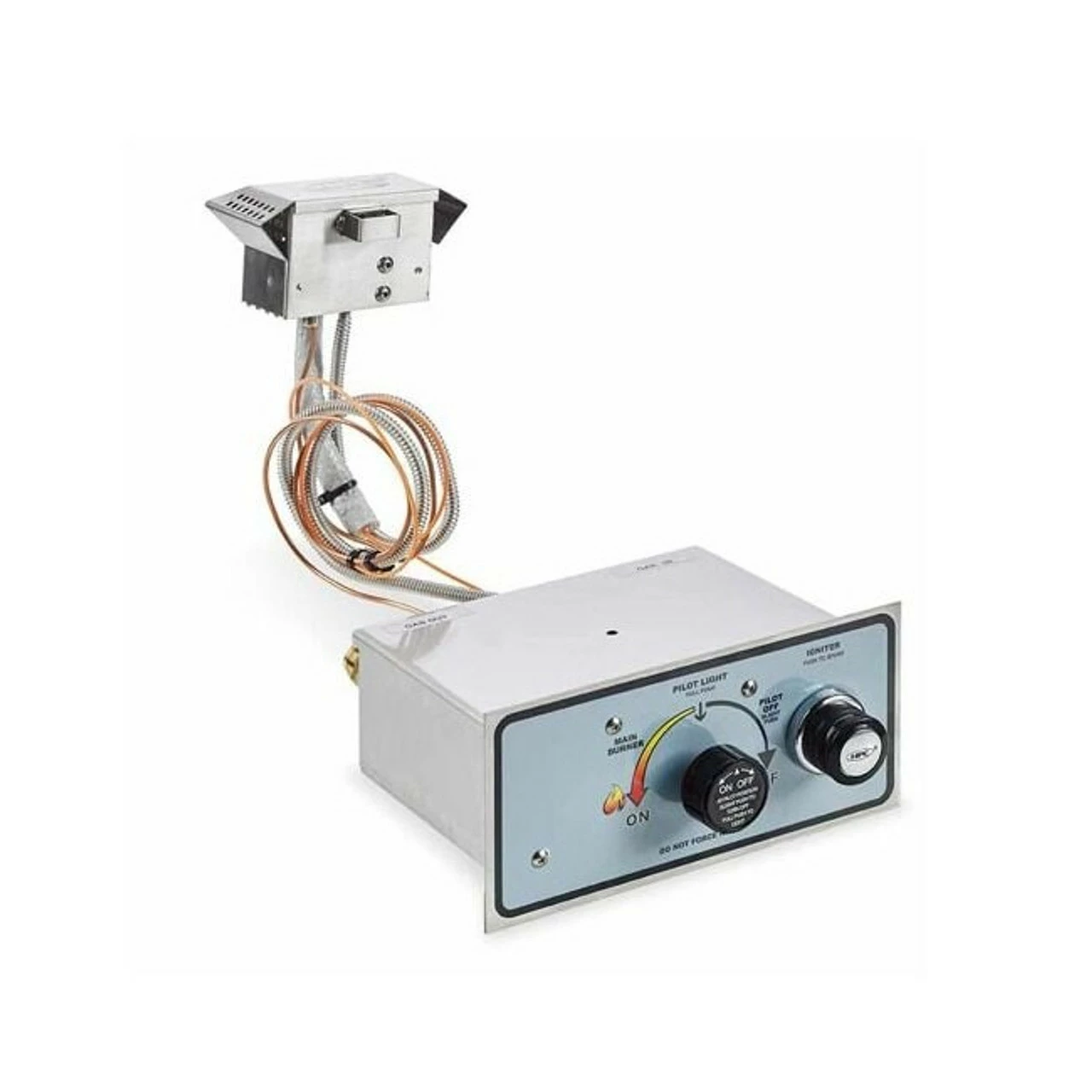

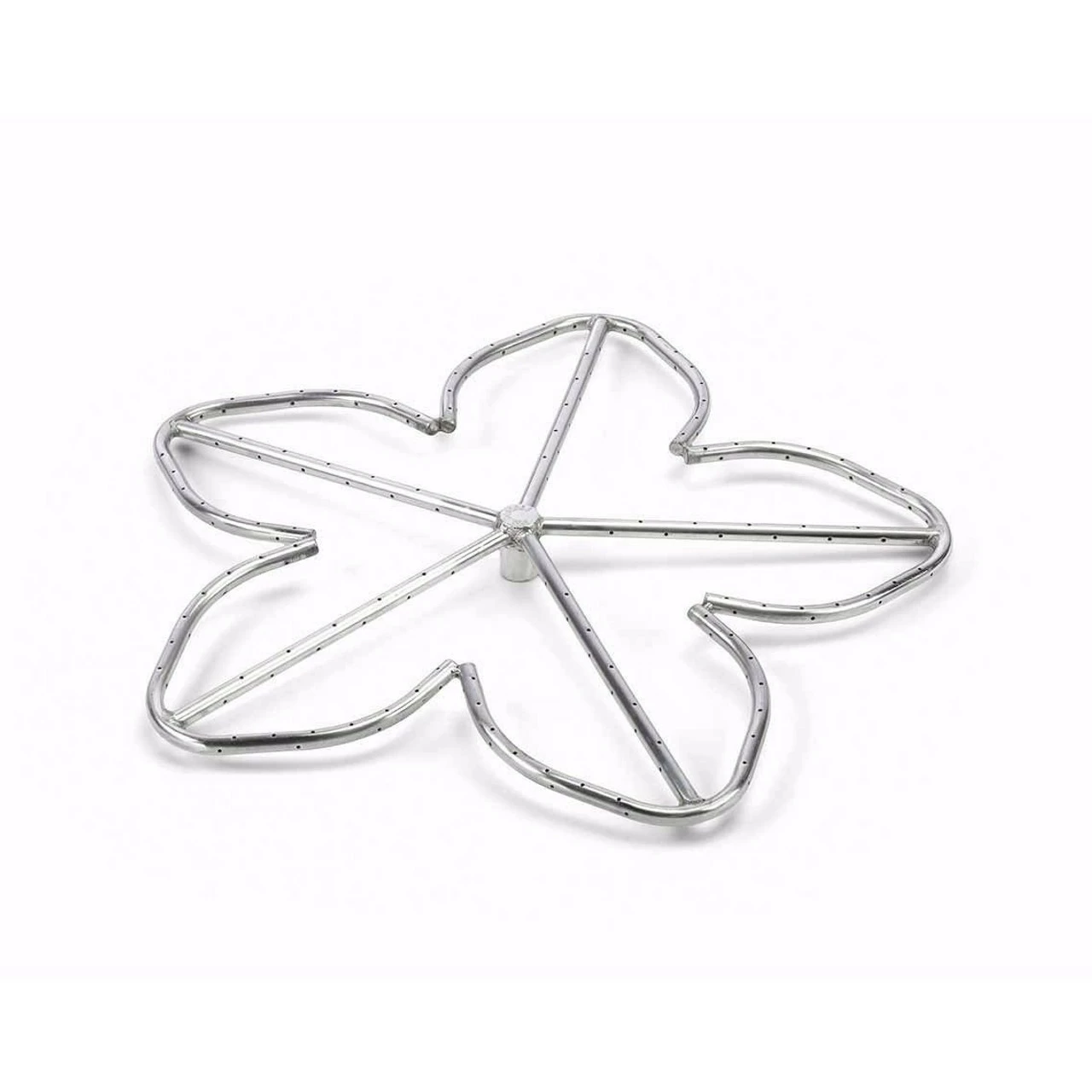

• Comes fully assembled with #304 stainless steel pan & burner, FPPK-HC control box with pilot assembly and whistle-free flex line.
• CSA Certified Small Tank Approved with use of STLPK Kit if shown with this symbol (*ST*)

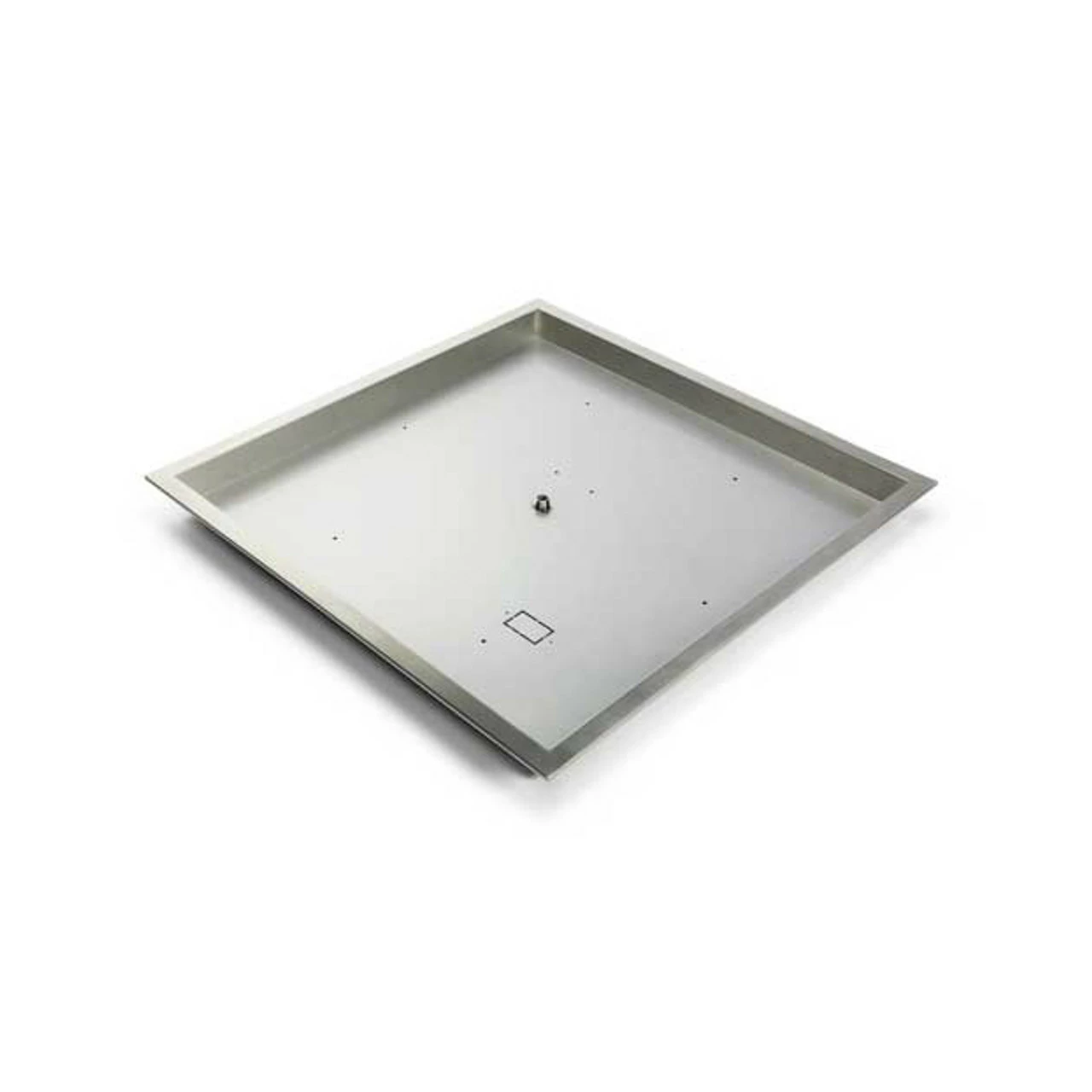

Bowl Type Pan – Gas Fire Pit Insert Models

This style of pan is our most popular – available from the small 18″ model to the large 36″ version.

---

Owners Manuals & Spec Sheets

---
